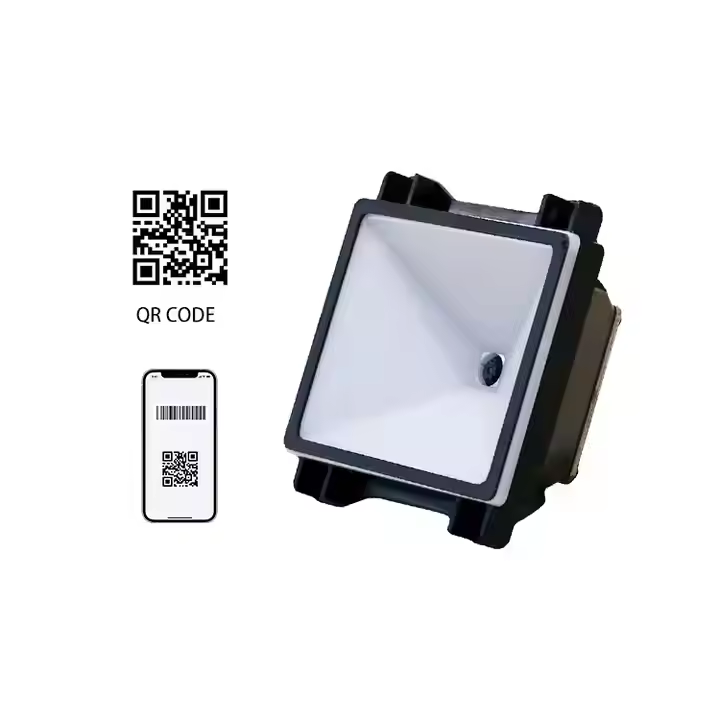

Barcode Reading Engine MF26P for Payment and Vending Machines

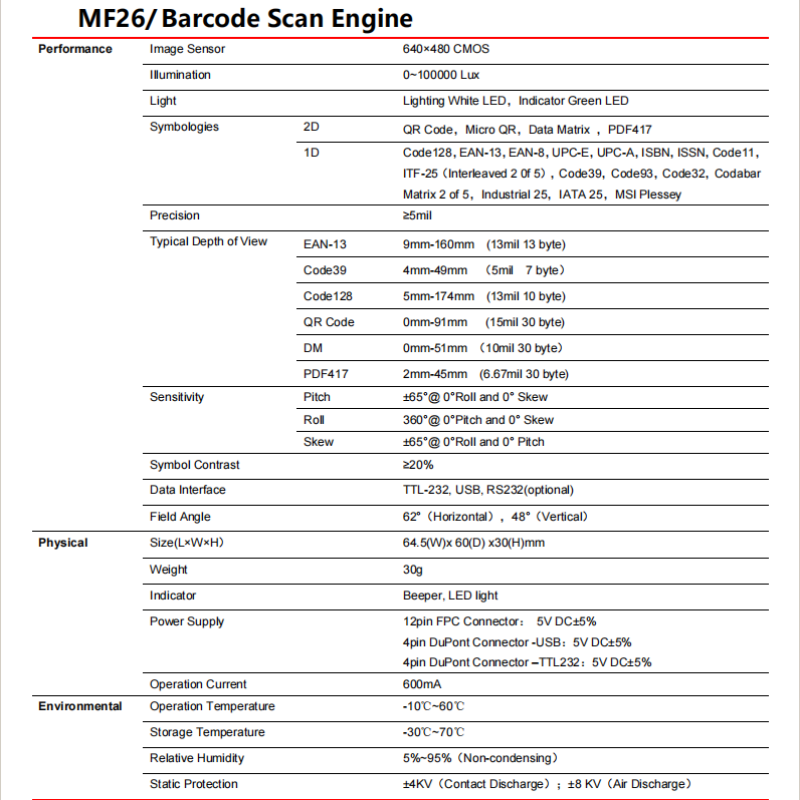

Image sensor 640*480 CMOS sensor

Lighting White LED

Symbols 2D QR Code, Micro QR, Data Matrix, PDF417

1D

Code128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN,

Code11, ITF-25 (Interleaved 2 0f 5), Code39, Code93,

Code32, Codabar Matrix 2 of 5, Industrial 25, IATA 25, MSI

Plessey

Reading accuracy* ≥5mil

Reading depth of field* EAN-13 10mm-120mm (13mil 13 bytes)

Code39 10mm-35mm (5mil 7 bytes)

Code128 10mm-150mm (13mil 10 bytes)

QR Code 0mm-100mm (15mil 30 bytes)

Data Marix 10mm-45mm (10mil 100 bytes)

PDF 417 10mm-45mm (6.67mil 30 bytes)

Contrast ≥10%

Angle Rotation 360°, Pitch ± 40°, Tilt ± 40°

Online consultation Datasheet

Product Details

Core technology

Adopting the core decoding technology independently developed, it can quickly read barcodes of various qualities.

Rich interfaces

Provide USB and TTL-232 interfaces to meet more application requirements, and can also customize RS232 interfaces as needed.

Specially designed for O2O applications

Specially designed for electronic payment barcodes such as WeChat and Alipay, and can also be compatible with common one-dimensional codes.

Compatible design

The interface definition and installation holes are compatible with the mainstream embedded barcode reading engines on the market.


Application scenarios

Payment terminal equipment, such as self-service vending machines, medical insurance terminals, etc.

Advanced Decoding Technology

The Barcode Reading Engine MF26P uses advanced decoding technology to deliver fast and accurate barcode scanning. It quickly reads barcodes of various qualities, ensuring high performance in demanding environments.

Versatile Interface Options

With USB and TTL-232 interfaces, the MF26P meets diverse connection needs. Custom RS232 interfaces are also available, providing flexible integration for specialized applications.

Optimized for O2O Payment Systems

Specially designed for O2O applications, the MF26P accurately scans barcodes from platforms like WeChat and Alipay. It is also compatible with all major one-dimensional barcode formats.

Seamless Compatibility and Easy Installation

The engine features a compatible interface and installation holes, making it easy to integrate with mainstream embedded barcode reading systems.

Ideal for Various Application Scenarios

The MF26P is perfect for payment terminals, self-service vending machines, and medical insurance devices. It delivers fast, precise scanning for automated solutions, enhancing efficiency across industries.

Barcode reading engine MF26P

Barcode Reading Engine
