Wearable 2D Barcode Scanner – OEM ODM Ring Design

Ring Barcode Scanner Fixed Mount Scanner Desktop Scanner Handheld Barcode Scanner Barcode Scan Engine PDA/POS Industrial Intelligence Printer Cash Register: * * *

- Portable ring-wearing wireless connection

- Core UIMG decoding technology

- 4.0 Bluetooth transmission

Via Bluetooth 4.0 Class 1 wireless technology, it can be paired with any Android, iOS or Windows device.

- Small enough to fit into your pocket and light enough to carry around all day

- High efficient and cost-saving

Scenarios:

Retail store management, logistics and inventory management, distributor warehouse management and more.

Mobile payments, e-coupons/e-vouchers, retail store management, inventory management, fixed asset management.

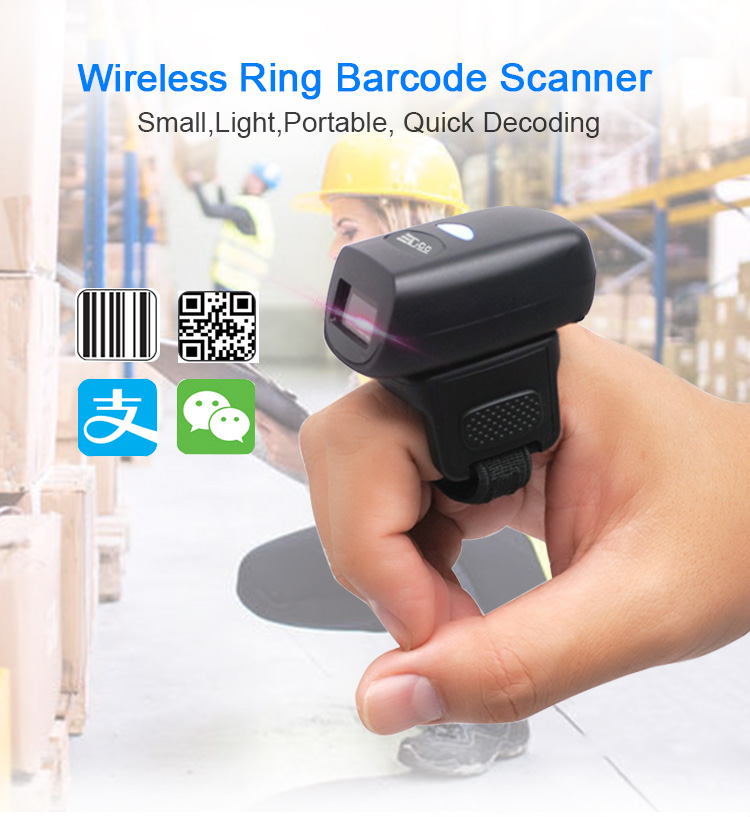

EDOO OEM ODM Best Price Cheap Portable Wearable Finger Ring Watch Wireless 1D 2D Handfree Barcode Sc(图2)

Finger-mounted scanner

EDOO OEM ODM Best Price Cheap Portable Wearable Finger Ring Watch Wireless 1D 2D Handfree Barcode Sc(图4)

EDOO OEM ODM Best Price Cheap Portable Wearable Finger Ring Watch Wireless 1D 2D Handfree Barcode Sc(图5)

Fast barcode scanning

Low power barcode scanner

Wireless ring scanner

Customizable barcode scanner

Multi-platform barcode scanner

Specification

R40-N1/Wireless Ring Barcode Scanner

Performance	Image Sensor	640*480
	Symbologies	2D: PDF417,QR Code (QR1/2, Micro),Data Matrix (ECC200, ECC000, 050, 080, 100, 140)
	Symbologies	1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Standard 25, Codabar, Industrial 25, Code39, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS) (RSS-14,RSS-Limited,RSS-Expand),Matrix 2 of 5
	Scan precision	≥3mil
	Depth of field	EAN-13 60mm~350mm (13mil)
		Code 39 40mm~150mm (5mil)
		PDF 417 50mm~125mm (6.67mil)
		Data Matrix 45mm~120mm (10mil)
		QR Code 30mm~170mm (15mil)
	Scan angle	Pitch: ±60°; Roll: 360°; Skew: ±60°
	PCS	≥25%
	Interface	Micro USB, Bluetooth4.1

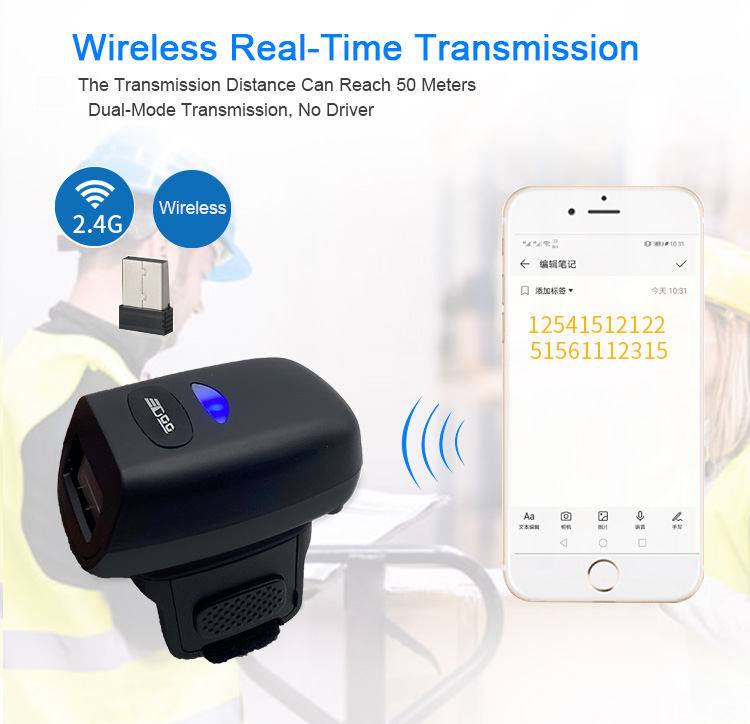

	Wireless transmission distance	50 m(wide empty area)

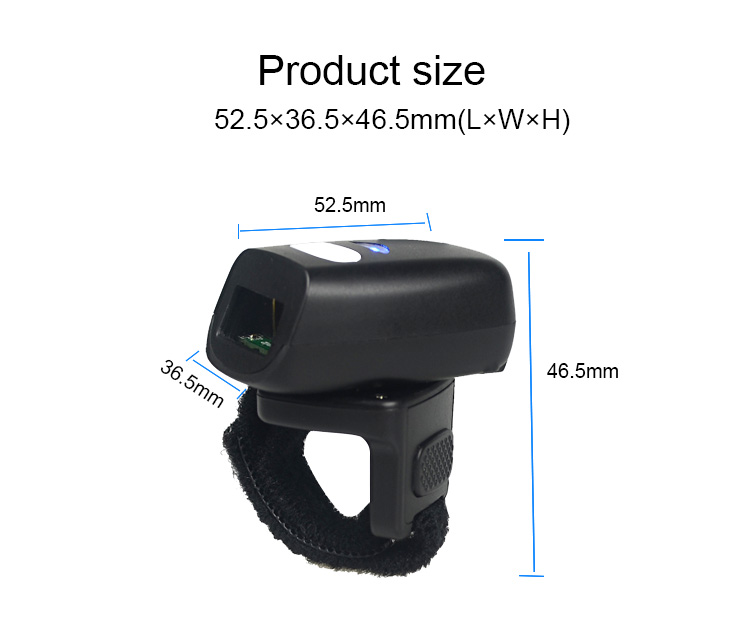

Physical/electrical	Physical dimension	52.5×36.5×46.5mm(L×W×H)
	Weight	40g
	Notifications	Sound, LED and vibration

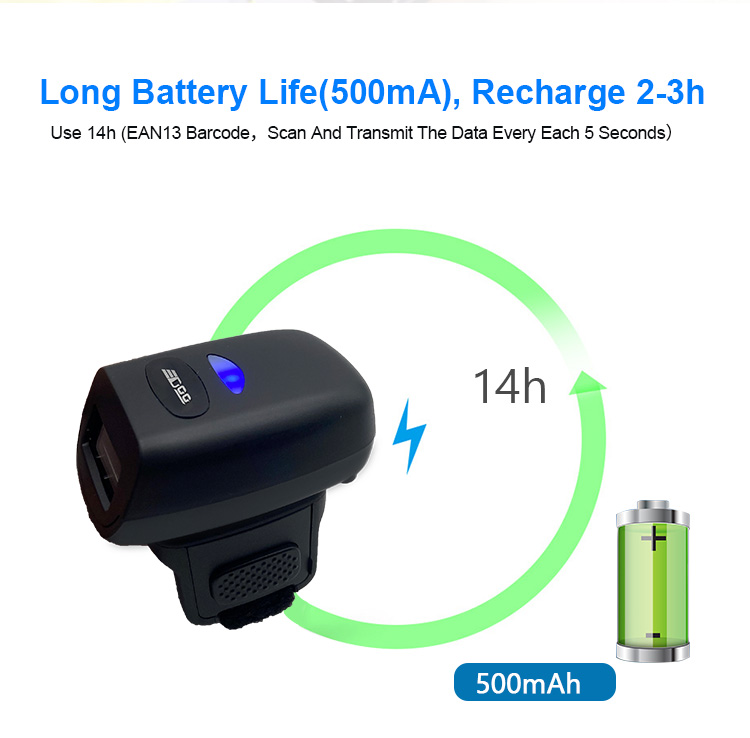

	Battery type	3.7V 500mAh rechargeable Li-ion battery
	Usage hours per charge	14hrs of continuous use(EAN13 barcode,scan and transmit the data every each 5 seconds)
	Charging hours	2hrs
	Power supply	Output: DC 5V, 2A input: AC100 ~ 240V, 50~60Hz
Environmental	Operating temperature	-20℃ to 50℃ (-4°F to 122°F)
	Storage temperature	-40℃ to 70℃ (-40°F to 158°F)
	Operating humidity	5%~95% (non-condensing)
	ESD	±8 KV (Contact discharge); ±15 KV (Air discharge)
	Drop	1.2m

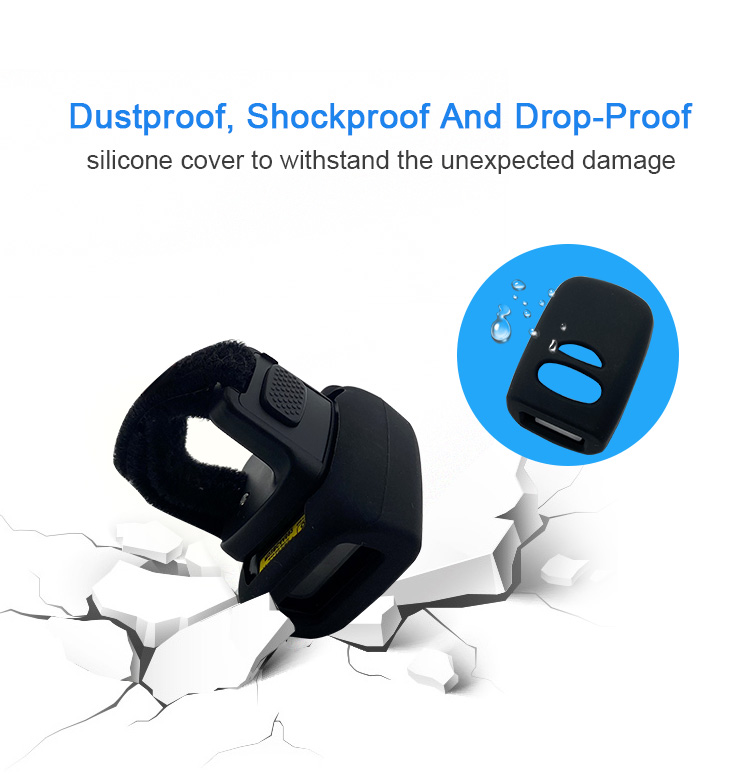

	Shell protection	IP42
Certifications		FCC Part15 Class B, EMC Class B,BIS
