EDOO ED5802 58mm Thermal Receipt Printer

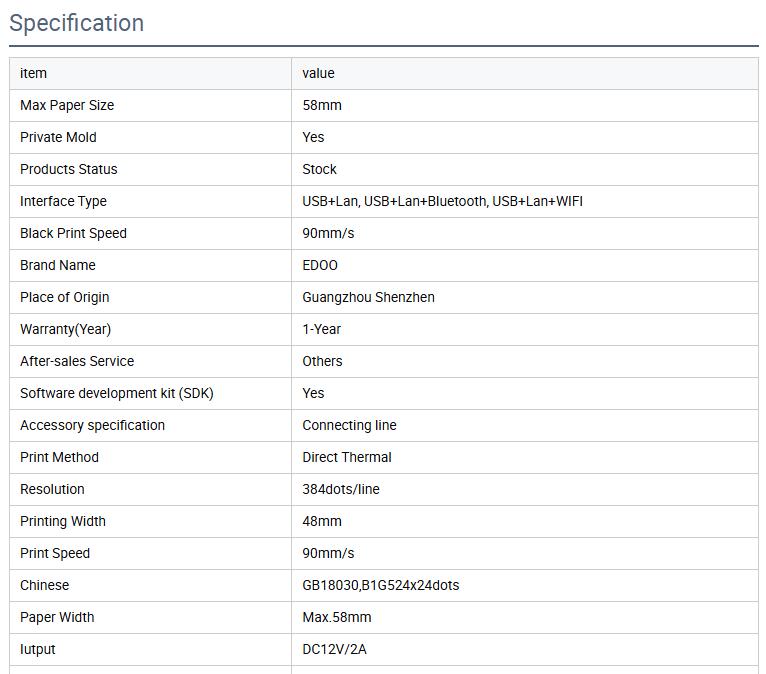

Key Specifications

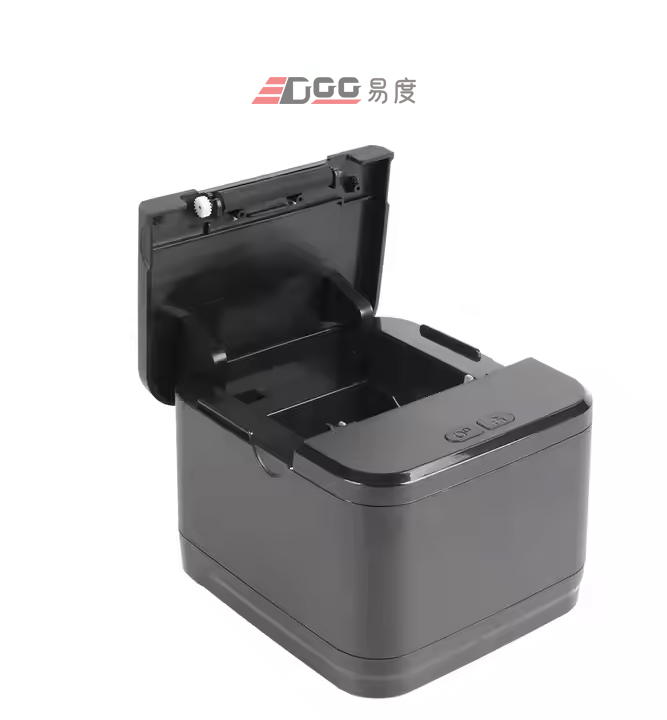

• Compact 118 x 131 x 93.3 mm body with a built-in power adapter and drop-in paper loading
• User-friendly driver makes installation quick on Windows, Android and iOS
• Text, image, 1D barcode and QR code printing all supported

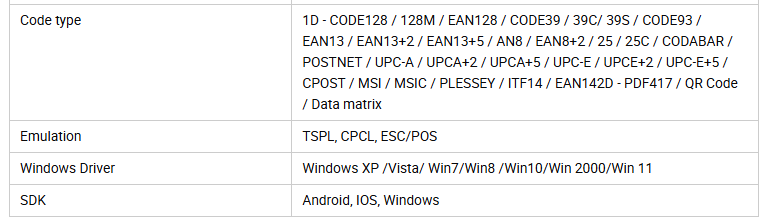

• ESC/POS, TSPL and CPCL emulation works with most POS and food-ordering software

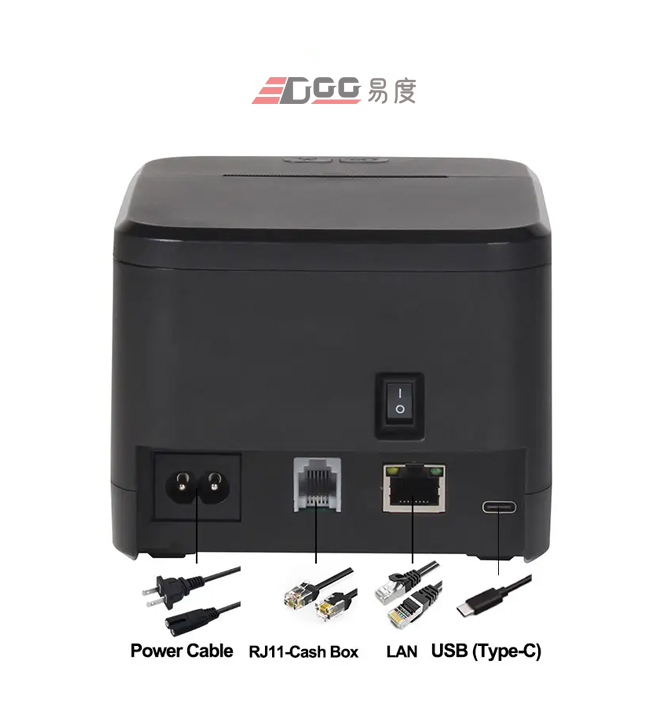

• USB (Type-C), LAN and RJ11 cash drawer port, with Bluetooth or WiFi optional
• Print Width: 48 mm
• Paper Width: max 58 mm
• Print Speed: 90 mm/s
• Resolution: 384 dots/line
• Interface: USB (Type-C) + LAN + RJ11 cash drawer, optional Bluetooth / WiFi

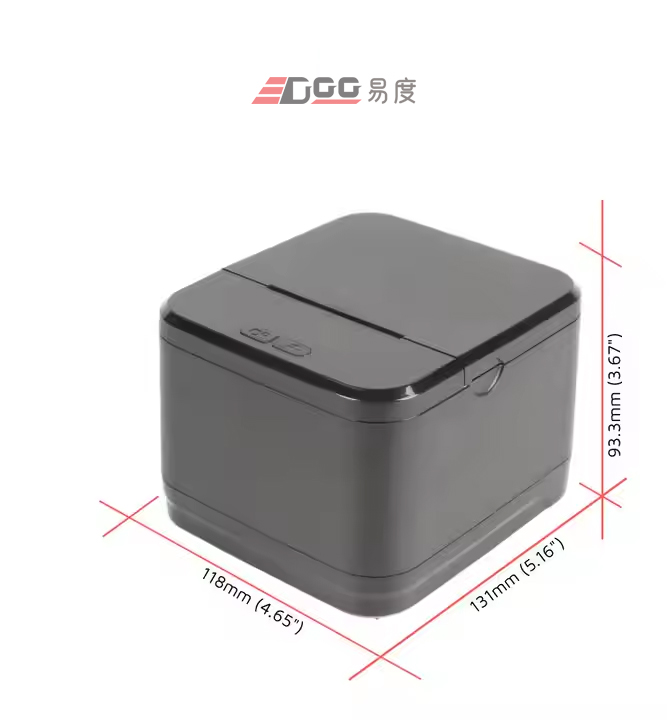

• Product Size: 118 x 131 x 93.3 mm
• Warranty: 1-Year
• SDK Provided: Yes

Product Description

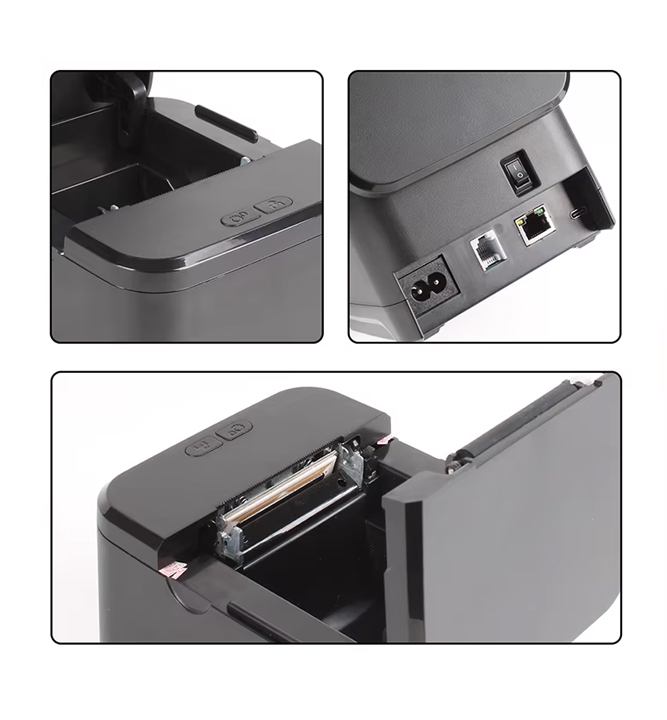

The EDOO ED5802 is a compact 58 mm direct-thermal receipt printer for POS sales and billing systems. It prints at 90 mm/s with 384 dots/line resolution and handles text, image, 1D barcode and QR code printing. The power adapter is built into the 118 x 131 x 93.3 mm housing, so the desk stays clear, and the rear panel carries USB (Type-C), Ethernet and an RJ11 drawer port, with Bluetooth or WiFi available on the ED5802-U+L model. ESC/POS, TSPL and CPCL emulation plus Android, iOS and Windows SDKs make it easy to integrate into cash registers, ticketing terminals and self-service software, from supermarkets and restaurants to pharmacies, hotels and service stations. Covered by a 1-year warranty, backed by EDOO remote technical support, with ODM and OEM orders welcome.

58 mm paper  |  Print width 48 mm  |  90 mm/s  |  Built-in adapter
