F50-M1 Fixed Barcode Scanner: Versatile, Compact, and High-Performance

‌F50-M1 Fixed Barcode Scanner – Technical Highlights‌

‌1. Proprietary Core Technology‌

Equipped with ‌independent IP-licensed decoding technology‌, the F50-M1 delivers ‌industry-leading 1D/2D barcode recognition‌—fast, accurate, and reliable even in challenging environments.

‌2. Versatile Connectivity‌

Flexible ‌USB + RS232 interfaces‌ (with optional TTL232) ensure seamless integration across diverse systems and applications.

‌3. User-Centric Design‌

‌High-Visibility Focus Indicator‌: Bright red aiming light ensures precise scanning for ‌both screen-based and paper barcodes‌, even in outdoor settings.
‌Space-Saving Form Factor‌: Compact side-profile design minimizes installation footprint while supporting ‌embedded deployment‌ in devices of any size.

‌4. Ultra-Compact Integration‌

The unified ‌image collector + decoding board‌ design maximizes space efficiency, simplifying integration into OEM products and custom solutions.

‌5. Global Application Scenarios‌

Ideal for:
✔ ‌Healthcare‌: Medical devices, lab equipment.
✔ ‌Logistics‌: Smart lockers, parcel tracking.
✔ ‌Retail & Hospitality‌: Self-service kiosks, ticket validators.
✔ ‌Industrial Automation‌: Inventory management, assembly lines.

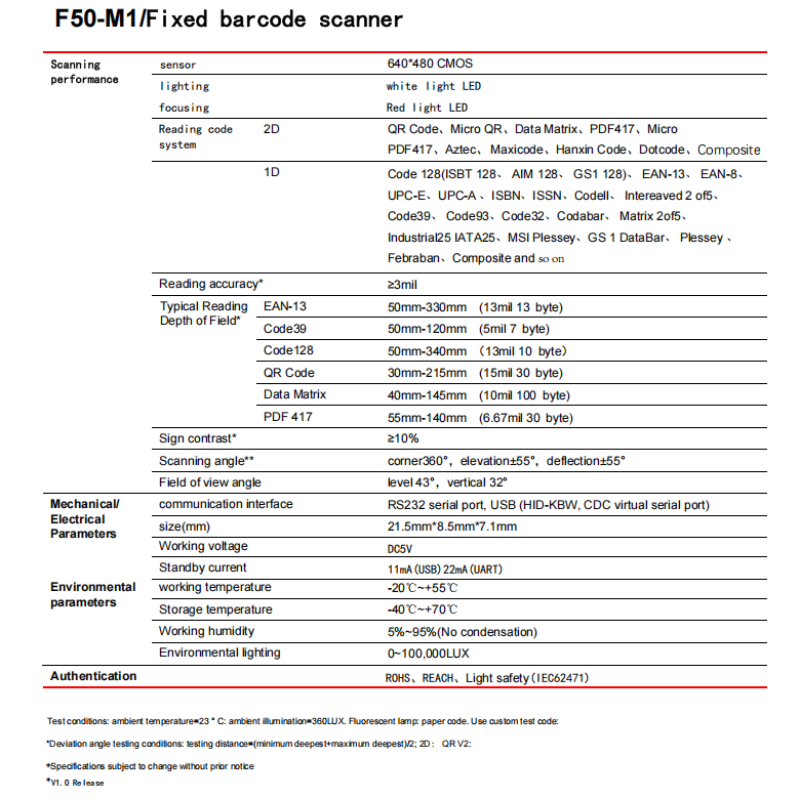

sensor 640*480 CMOS

lighting: white light LED

focusing: Red light LED

communication interface RS232 serial port, USB (HID-KBW, CDC virtual serial port)

size(mm) 21.5mm*8.5mm*7.1mm

Working voltage DC5V

Standby current 11mA(USB)22mA(UART)

Online consultation Datasheet

Product Details

 Own core technology

Adopting core decoding technology with independent intellectual property rights, it has excellent 1D/2D decoding capabilities.

 Multi-interface

Provide USB and RS232 (optional TTL232) interfaces to meet more application needs.

 Clear focus indicator

Adapt to various application requirements such as screen codes and paper codes, with clear red light focus indicators that are equally clear for outdoor applications; Side appearance reduces user installation space; Compact structure, suitable for embedded installation of devices of all sizes.

 High integration

The integrated design of image collector and decoding board has high integration and can adapt to various product integration applications.

Application scenarios

Medical equipment, express lockers, ticket checking machines, display booths, various self-service application devices, etc.

The F50-M1 Fixed Barcode Scanner integrates advanced core decoding technology with independent intellectual property. It provides excellent 1D and 2D barcode decoding capabilities, ensuring fast and accurate scanning in diverse environments.
