Barcode Scan Engine

HOME  -  PRODUCT  -  Barcode Scan Engine

Ring Barcode Scanner Fixed Mount Scanner Desktop Scanner Handheld Barcode Scanner Barcode Scan Engine PDA/POS Industrial Intelligence Printer

Send your inquiry

* * *

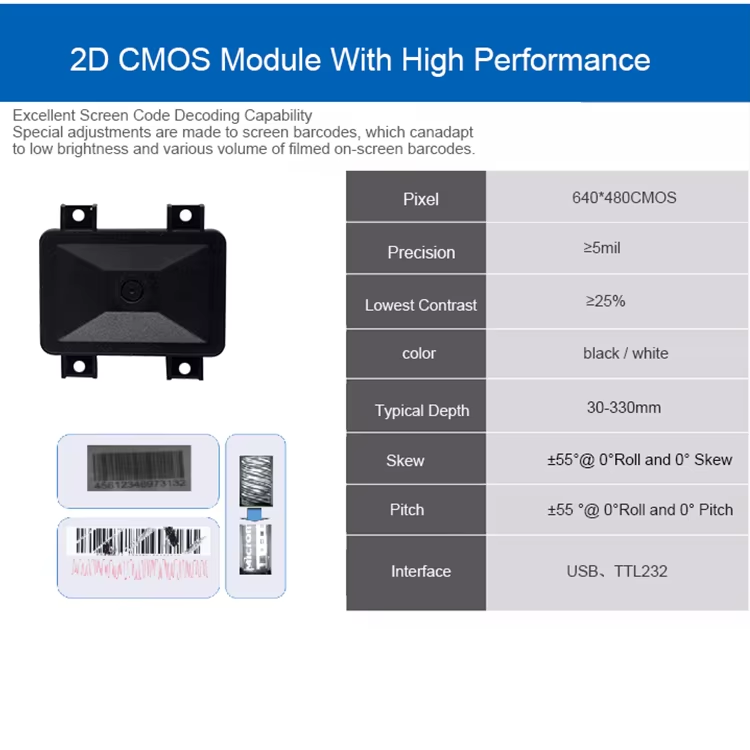

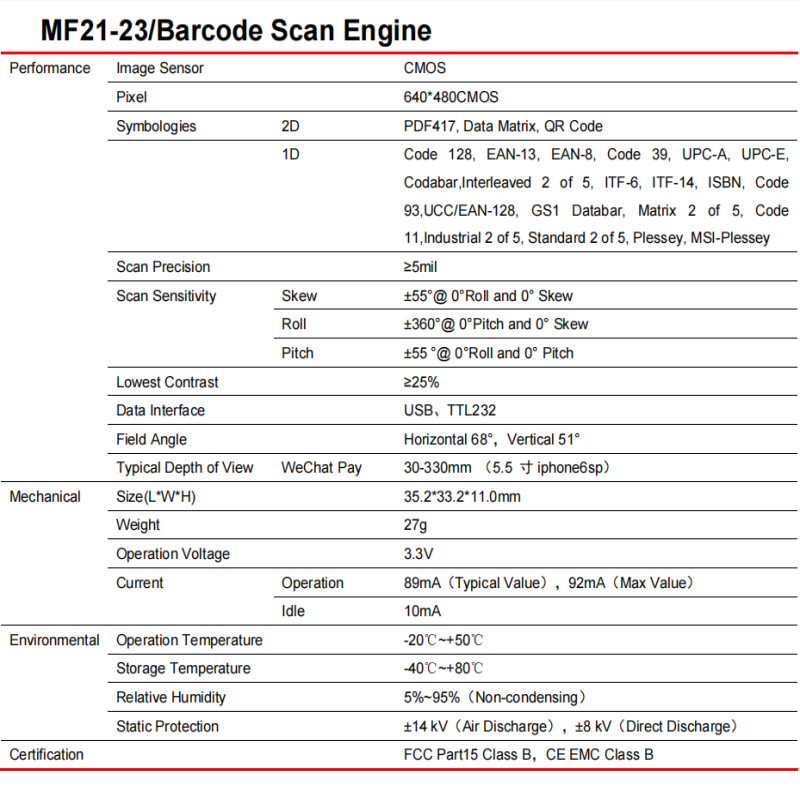

Key Features of Barcode Reading Engine MF21-23Z for Industrial Use

Sensor 640*480 CMOS

Lighting White LED

Communication interface USB, TTL232, RS232 (customized)

Dimensions (mm) 35.2*33.2*15.5mm

Operating voltage/current DC5V/160mA

Standby current 10mA (USB) 22mA (UART)

Online consultation Datasheet

Product Details

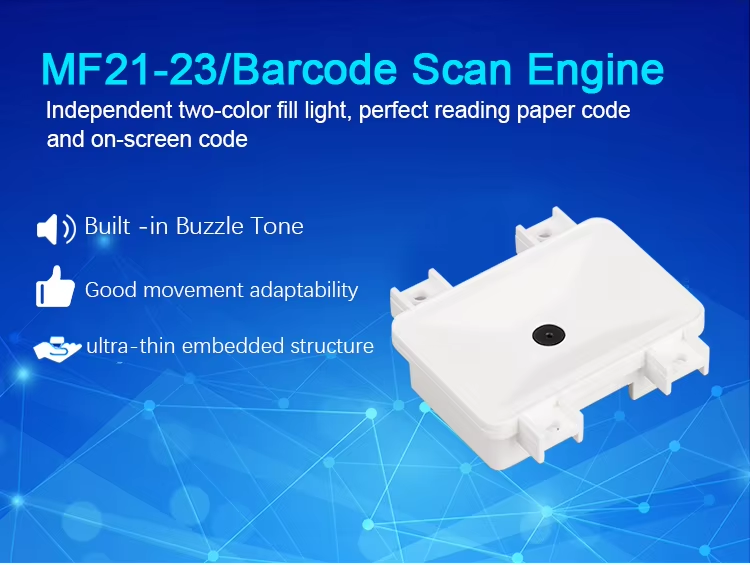

The Barcode Reading Engine MF21-23Z delivers advanced 1D/2D decoding with proprietary technology. It ensures fast and accurate scanning for paper and screen barcodes, even under low brightness or film-covered conditions.

Owned core technology

Adopts core decoding technology with independent intellectual property rights, with excellent 1D/2D decoding capabilities.

Multiple interfaces

Provide USB, TTL232, and RS232 interface can also be customized to meet more application needs.

Excellent screen code capabilities

Special adjustments are made for screen barcodes to adapt to low brightness and large data volume screen barcodes of various types of films. Excellent paper code reading performance.

Sophisticated design

The maximum peripheral size is 35.2*33.2*15.5mm, which is easy to embed into various scanning devices and payment terminals.

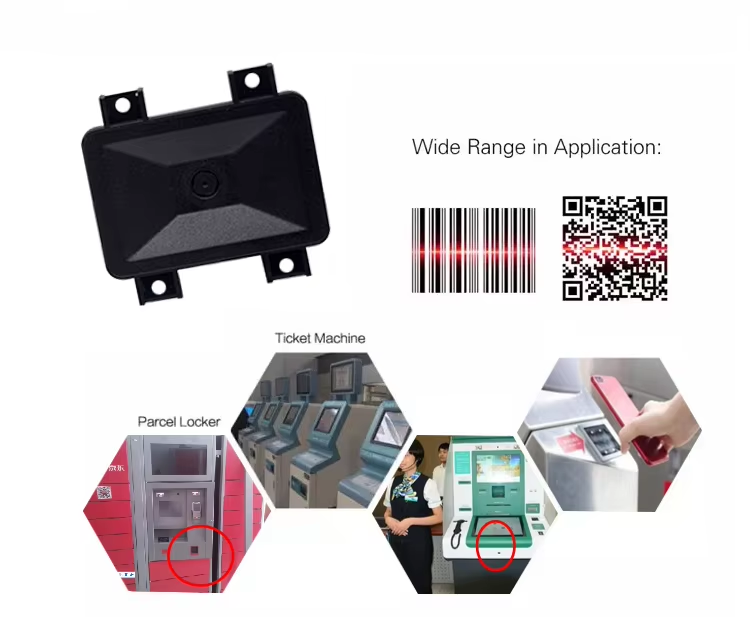

Application scenarios

Can be widely used in industrial flat panels, electronic sentinels, gates, access control, express cabinets, ticket machines, display booths, various self-service application equipment, etc.


POS Barcode Scanner Module

Self-Service Kiosk Scanner

Barcode Scanner for Access Control
