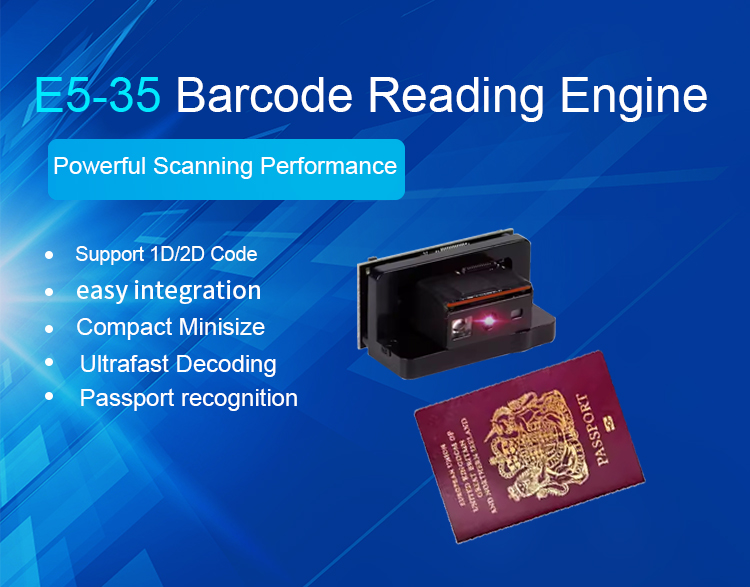

EDOO E5 USB RS232 Embedded Fixed Mount Passport MRZ Reader QR Code Barcode Scanner Module for USB Engine Business Card Scanner

Feature  Core Technology Adopt the self-developed core decoding technology,  with excellent decoding capabilities for 1D/2D.  Snappy On-Screen Barcode Capture The engine excels at reading on-screen barcodes  even when the screen is covered with protective film  or set to its lowest brightness level.  Clear Aiming Mode  Even in bright sunlight, it can provide clear laser  cross aiming to ensure accurate barcode scanning.  Support 5V Power Supply Support 5V power supply，to meet the supply voltage is  5V application.  Multiple Interfaces To provide USB or TTL-232 or RS-232(need  customization) interface, to meet different interface  requests.  Split Design Separate engine and interface board design, can be  used according to the need to remove the bracket.

Application Scenarios: It’s widely used in PDA, Tablet, AFC, toll gate, access control, express delivery cabinet, ticket verification  device, customer service center, and other self-service terminals (kiosks)

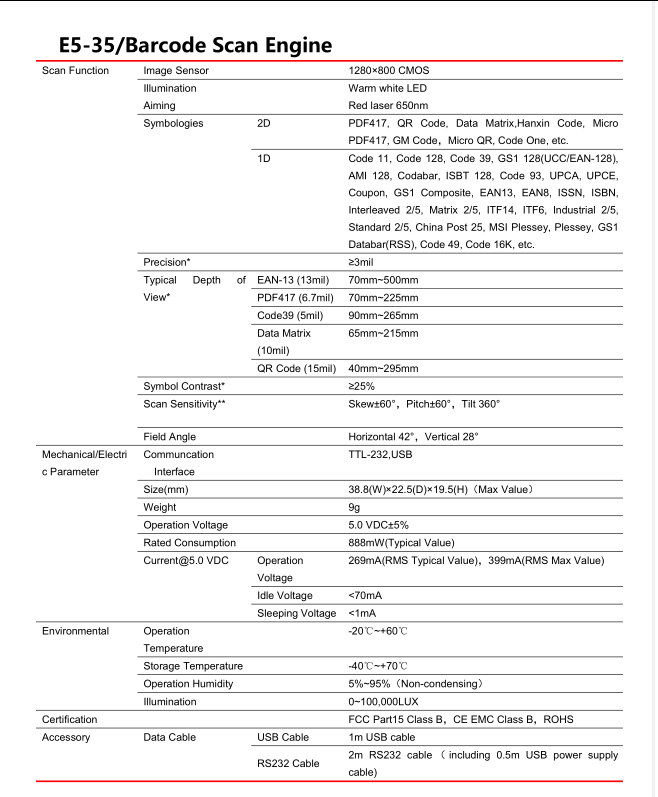

Online consultation Datasheet
