Many kiosk manufacturers and smart terminal developers face challenges such as slow barcode recognition, poor screen scanning performance, and limited installation space. An embedded barcode scanner module helps you solve these problems by providing fast, accurate, and flexible barcode reading for self-service equipment, payment terminals, and industrial devices.

EDOO develops compact barcode scanning solutions designed for modern intelligent hardware applications. The MF27-23Z embedded barcode scanner module integrates advanced decoding technology, dual-CPU architecture, and multiple communication interfaces to support reliable 1D and 2D barcode recognition in complex environments.

Why Choose EDOO Embedded Barcode Scanner Module for Kiosks?

When you design kiosks, payment terminals, or smart devices, scanner performance directly affects user experience. A low-quality scanner may fail to recognize damaged codes, low-brightness screens, or barcodes under strong lighting conditions.

EDOO’s embedded barcode scanner module is engineered to provide stable scanning performance with:

• Independent decoding technology developed for efficient barcode processing
• Dual-CPU architecture for improved decoding capability
• Support for 1D and 2D barcode recognition
• Optimized screen barcode reading for mobile displays
• Compatibility with paper barcode applications
• Compact dimensions for easy device integration

The module is suitable for industries including retail, transportation, healthcare, ticketing, logistics, and self-service payment systems.

Key Features of Embedded Barcode Scanner Module

High-Speed 1D and 2D Barcode Decoding

The MF27-23Z scanner module uses self-developed decoding technology to improve recognition speed and accuracy.

It can read:

• QR codes displayed on smartphones
• Digital coupons and electronic tickets
• Product barcodes
• Printed labels
• Logistics and warehouse codes

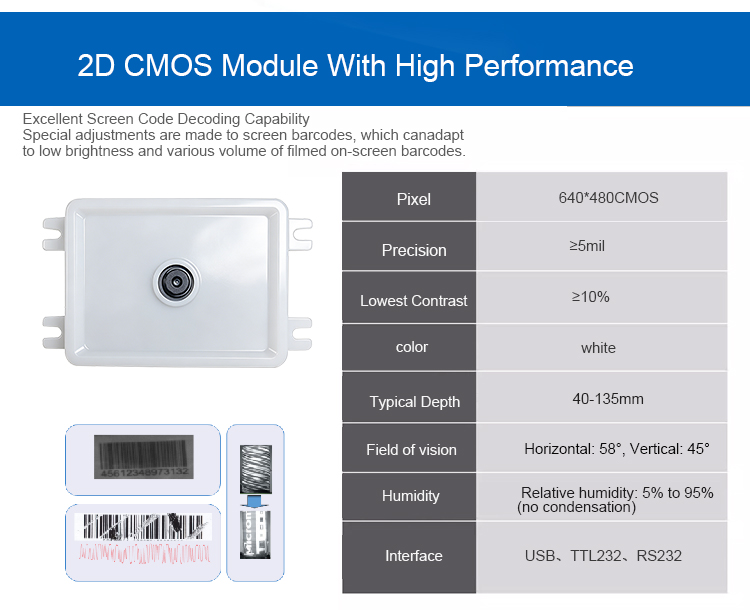

The scanner is specially calibrated for screen-based barcode applications, allowing stable recognition even when displays have low brightness or protective films.

Compact Design for Kiosk Integration

Space limitations are common in kiosk and payment terminal designs. EDOO’s scanner module features an ultra-thin structure with maximum dimensions of:

55.1 × 33.4 × 10.8 mm

This compact size allows you to integrate the module into:

• Self-service kiosks
• Payment terminals
• Access control systems
• Smart vending machines
• Industrial inspection equipment

The small footprint reduces product design limitations while maintaining reliable scanning performance.

Embedded Barcode Scanner Interfaces and Application Comparison

Different industries require different connection methods. EDOO provides multiple interface options to simplify integration.

For OEM manufacturers and system integrators, an embedded barcode scanner module offers better flexibility for customized hardware solutions.

How to Integrate an Embedded Barcode Scanner Module into Your Device

You can complete the integration process through these steps:

1. Define your application requirements
   Identify barcode types, scanning distance, operating environment, and interface needs.
2. Select the suitable scanner module
   Choose a module according to device size, communication method, and performance requirements.
3. Connect the hardware interface
   Use USB, TTL232, or optional RS232 communication according to your system design.
4. Test barcode recognition performance
   Verify scanning accuracy with screen codes, printed labels, and different lighting conditions.
5. Complete product optimization
   Adjust mechanical installation and software settings before mass production.

Applications of EDOO Embedded Barcode Scanner Module

EDOO provides barcode scanning solutions for various intelligent equipment manufacturers.

Typical applications include:

• Retail kiosks: customer self-checkout and product identification
• Payment terminals: QR payment and digital transaction verification
• Ticketing systems: electronic ticket and access control scanning
• Industrial equipment: product tracking and inspection processes
• Smart vending machines: automated product selection and payment

With experience in barcode scanners, PDA/POS devices, RFID solutions, and industrial intelligence products, EDOO supports businesses requiring customized scanning hardware.

FAQ

1. What types of barcodes can an embedded barcode scanner module read?

An embedded barcode scanner module can read both 1D and 2D barcodes, including printed barcodes and QR codes displayed on digital screens.

2. Can this scanner module be used in self-service kiosks?

Yes. The compact design, USB/TTL232 interfaces, and optional RS232 connection make it suitable for kiosks, payment terminals, and smart self-service devices.

Conclusion

Choosing the right embedded barcode scanner module can improve scanning efficiency, simplify hardware integration, and enhance user experience in kiosks and smart terminals. With compact dimensions, multiple interfaces, and reliable 1D/2D decoding performance, EDOO MF27-23Z provides a practical scanning solution for modern intelligent devices.

Contact EDOO today to discuss your embedded barcode scanner requirements and request the MF27-23Z datasheet for your next kiosk or terminal project.
