Physical Size(L*W*H) 150mm x 95mm x 95mm
Weight 220g
Indication White LED Even Illumination
Beeper Sound of scanning output
Operation Voltage 4.5-5V
Operation Current Peak value: 240mA, idle: 65mA
Rated Consumption Peak value: 1200mW,idle: 325mW

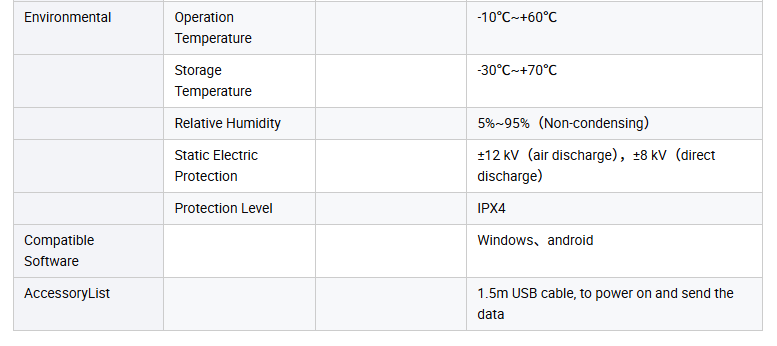

Environmental Operation Temperature -10℃~+60℃
Storage Temperature -30℃~+70℃
Relative Humidity 5%~95%(Non-condensing)
Static Protection ±12 kV(Air discharge),±8 kV(Direct discharge)
Protection Level IPX4

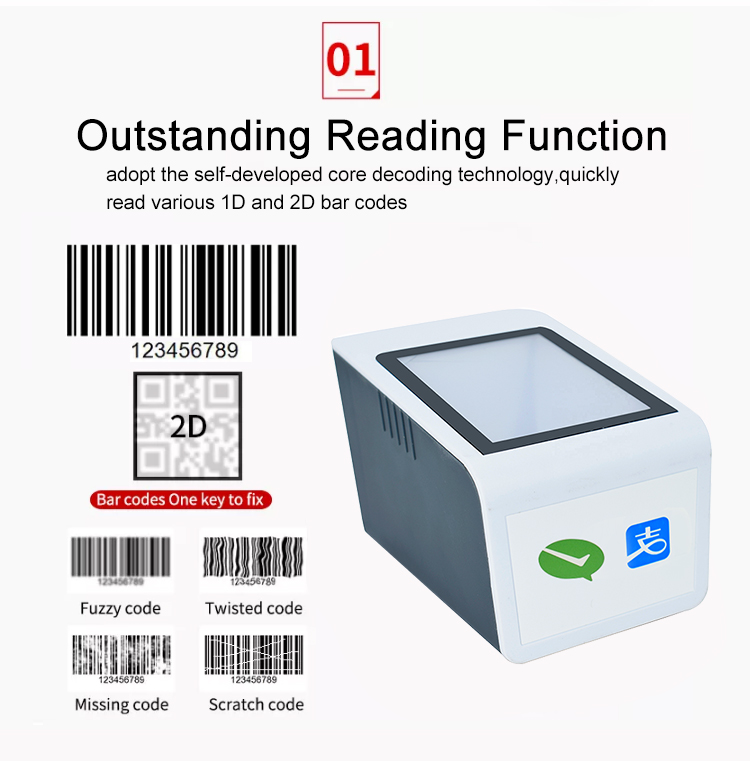

Outstanding Reading Function
Adopt the self-developed core decoding technology, quickly read various 1D and 2D bar codes.

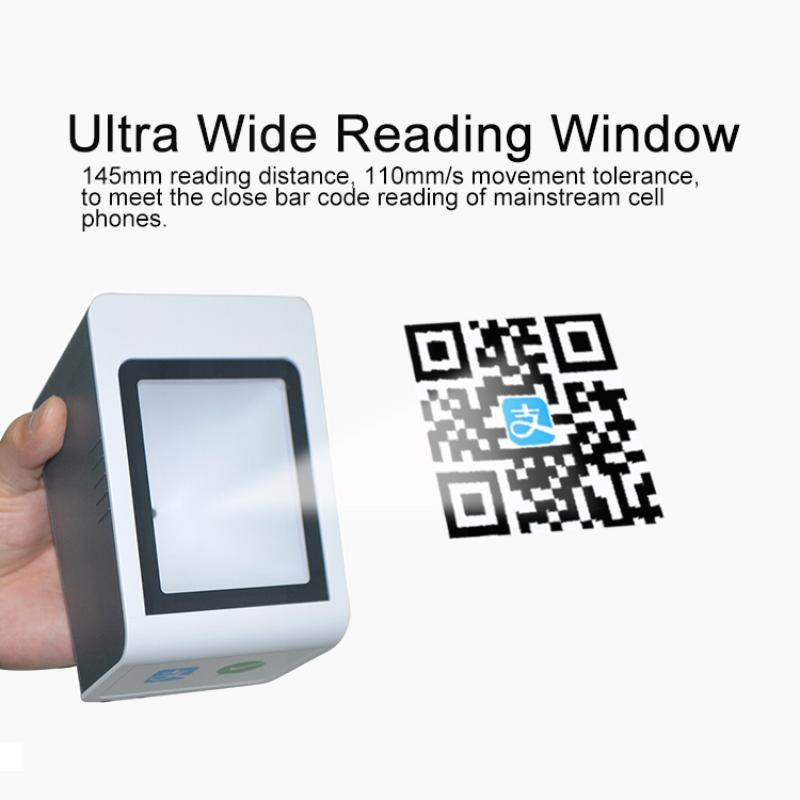

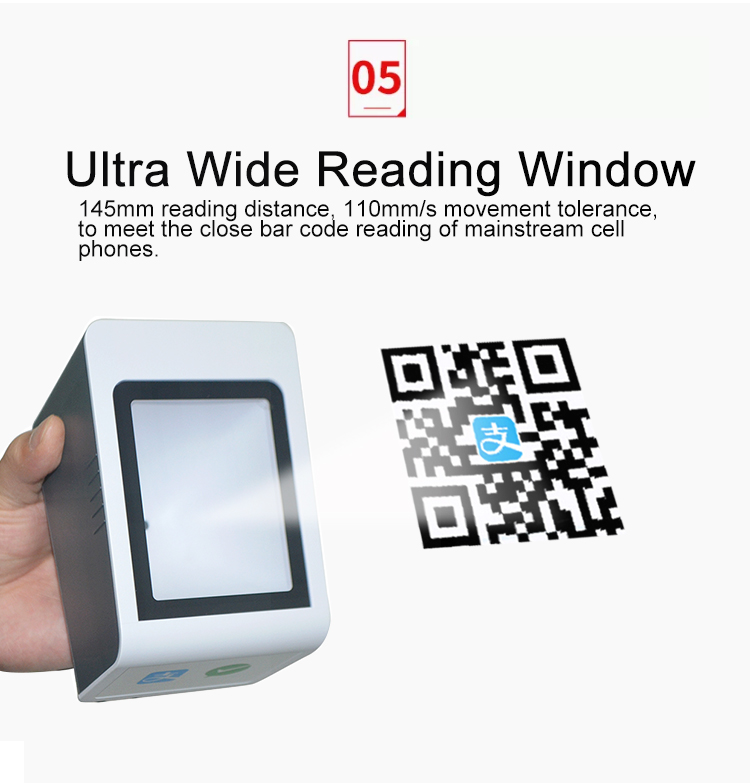

Ultra Wide Reading Window
145mm reading distance, 110mm/s movement tolerance, to meet the close bar code reading of mainstream cell phones.

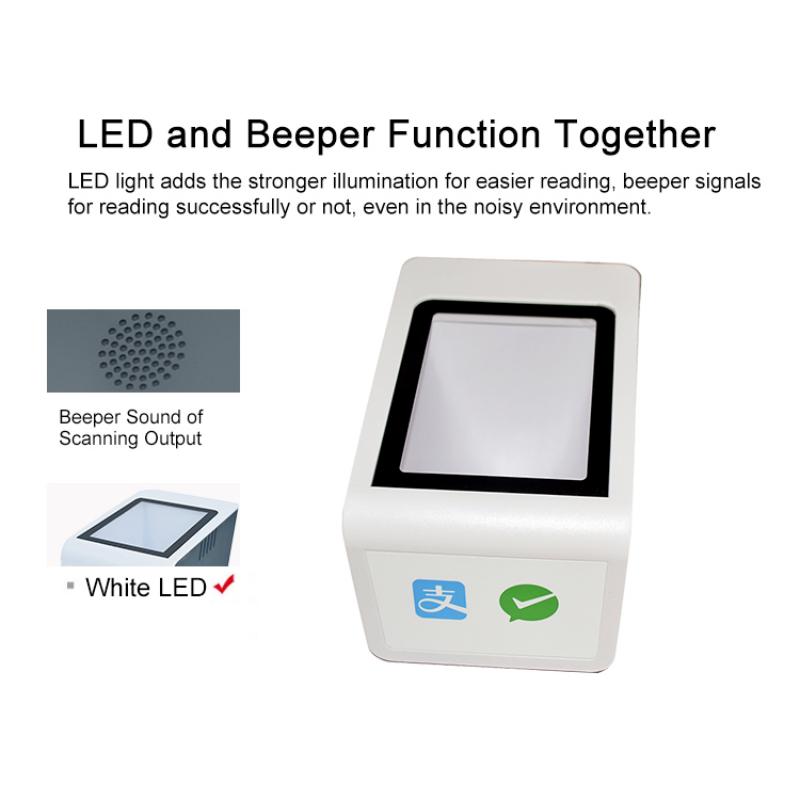

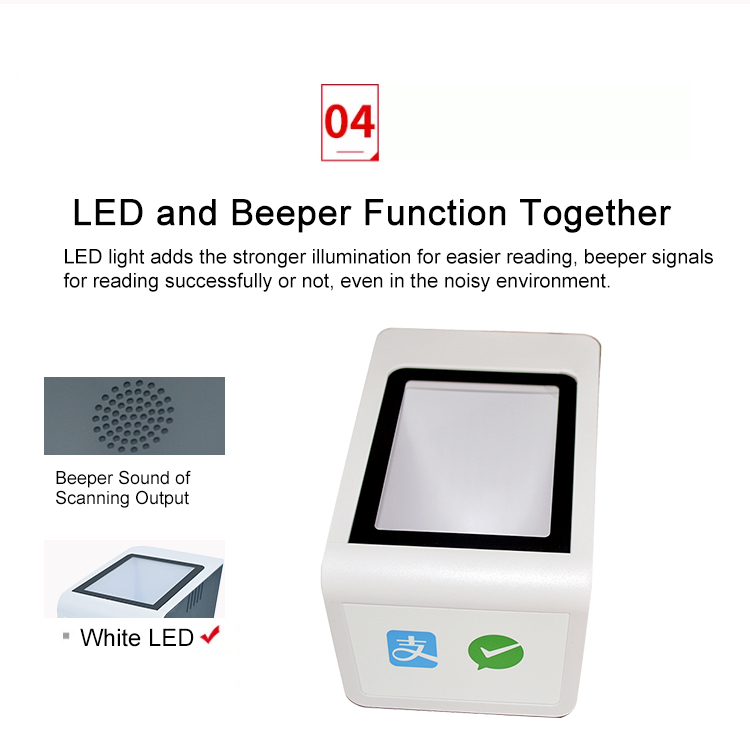

LED and Beeper Function Together
LED light adds the stronger illumination for easier reading, beeper signals for reading successfully or not, even in the noisy environment.
Speedy Multiple Scanning
Support quick reading and continuous quick reading of cell phone, support quick reading of 2D bar code on paper.
Application Scenarios:
Supermarket/retail shop cashier, vendor booth, customer service center, ticketing vending/verification point, QR code e-payment of AliPay/WeChat Pay.

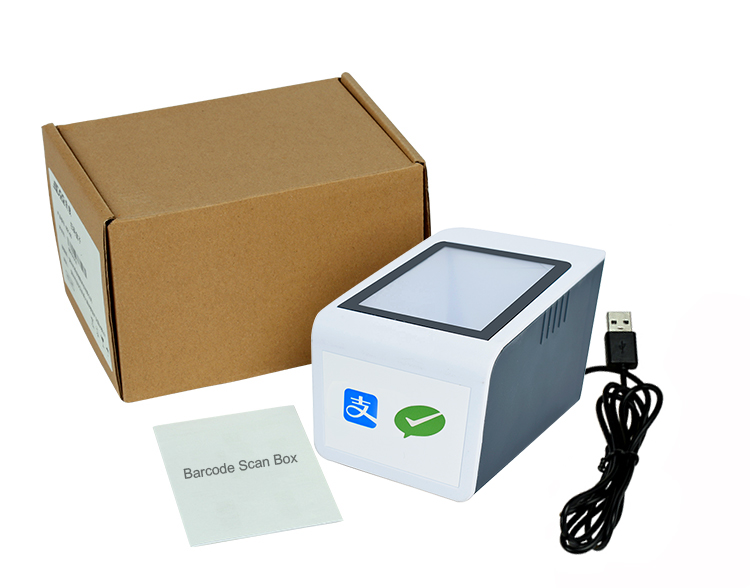

The B21-10 Barcode Scan Box delivers fast and reliable barcode decoding.
It supports all standard 1D and 2D barcode formats.
You can scan from paper labels or smartphone screens.
