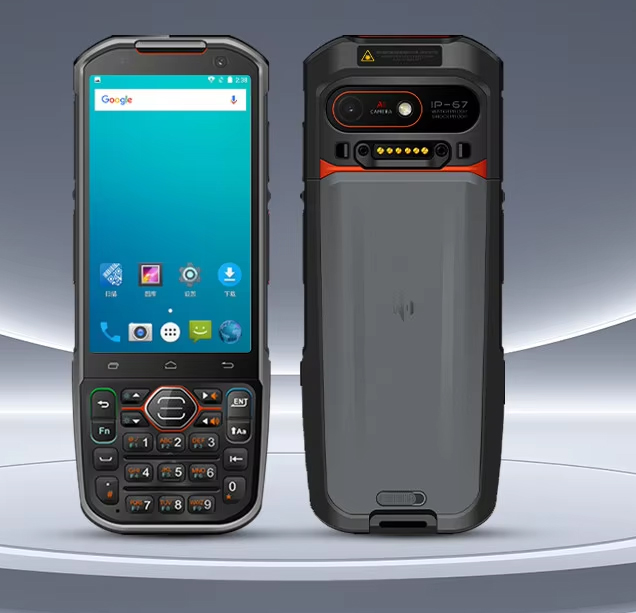

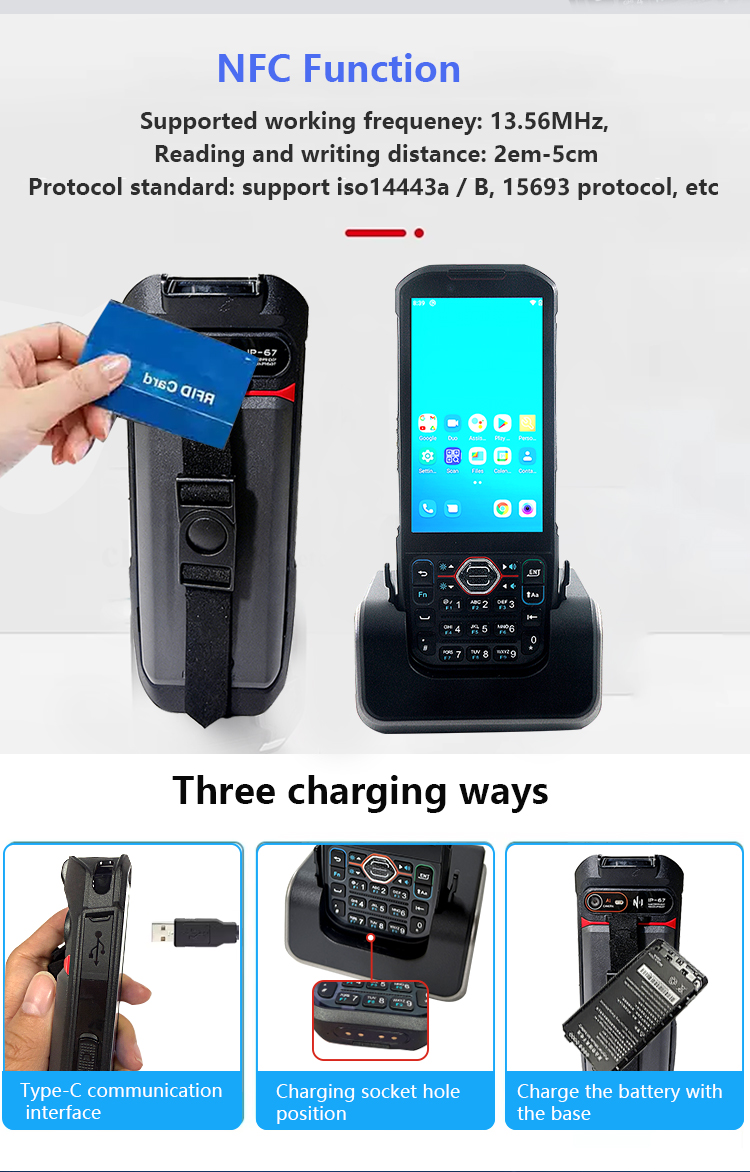

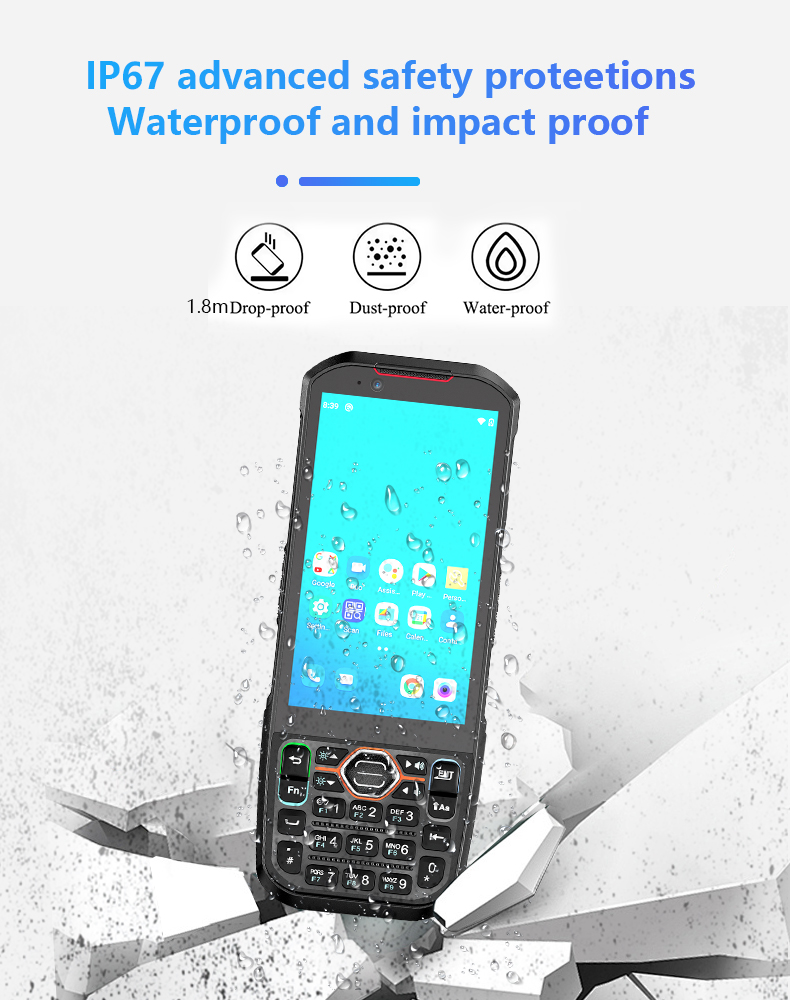

EDOO M73 Android 13 Rugged PDA 6G+64G Hot-swappable GNSS Inventory System NFC 13.56MHz 4G-LTE Wifi Hot-Swap Handheld Data Stock

performanceparameter

Eight core

DataCommunication

Physicalparameters

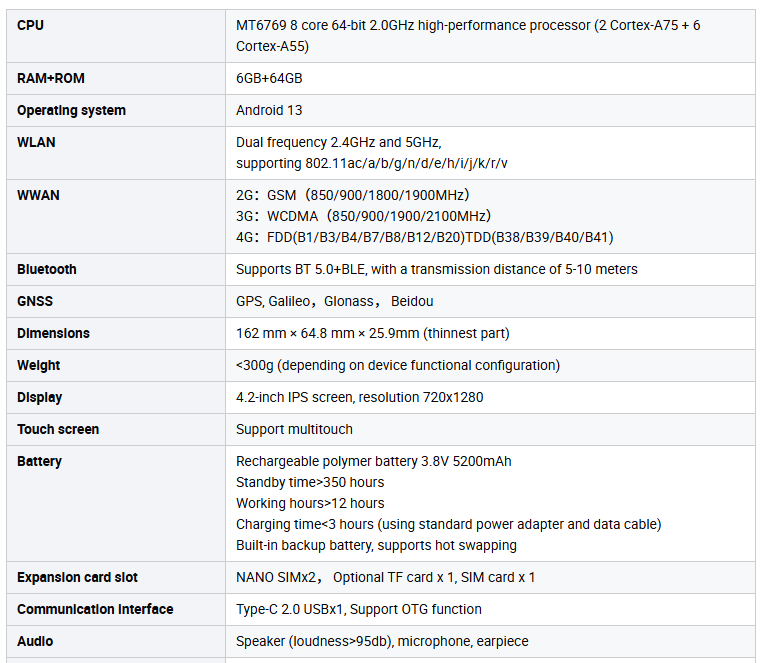

CPU

RAM+ROM

Operating system

WLAN

WWAN

Bluetooth

GNSS

Dimensions

Whole machine weight

display

Touch screen

MT6769 eight core 64 bit 2.0GHz high-performance processor (2 ARM)@ Cortex-A75 core+6ARM ® Cortex-A55 Core

6GB+64GB

Android 13

Dualband 2.4GHz/5GHz,supporting IEEE802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protoco

2G:GSM(850/900/1800/1900MHz)

3G:WCDMA(850/900/190012100MHz)4G:FDD:B1/B3/B4/B7/B8/B12/B20TDD:B38/B39/B40/B41Supports BT 5.0+BLE, with a transmission distance of5-10 meters

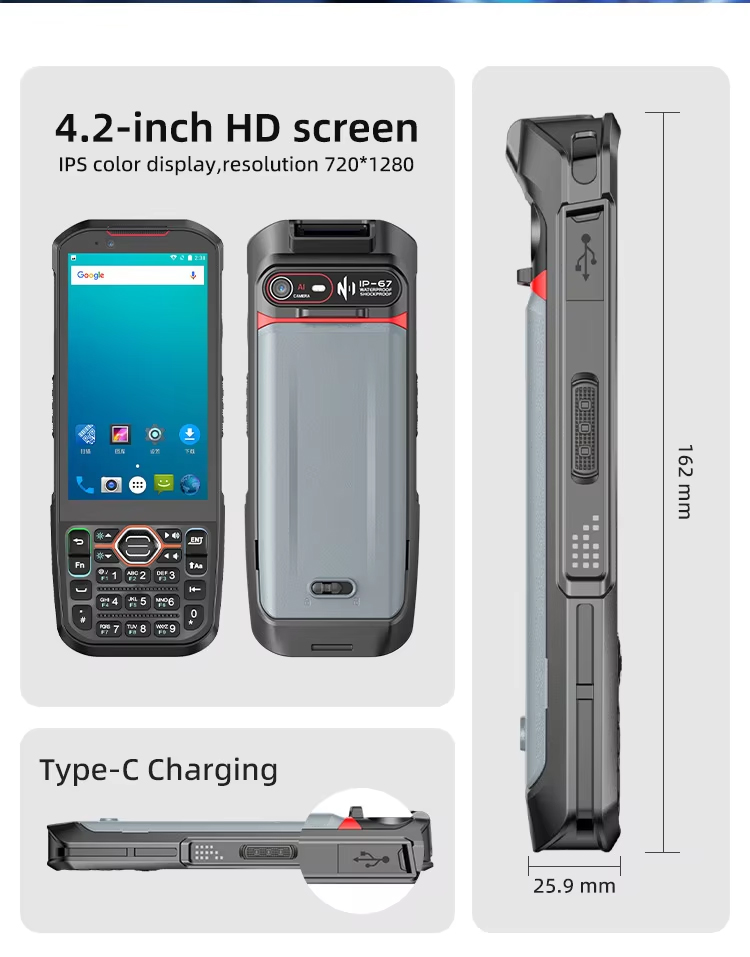

Supports GPS,Galileo, Glonass, Beidou162 mm x 64.8 mmx 25.9mm (thinnest part)

<300g(depending on device functional configuration)

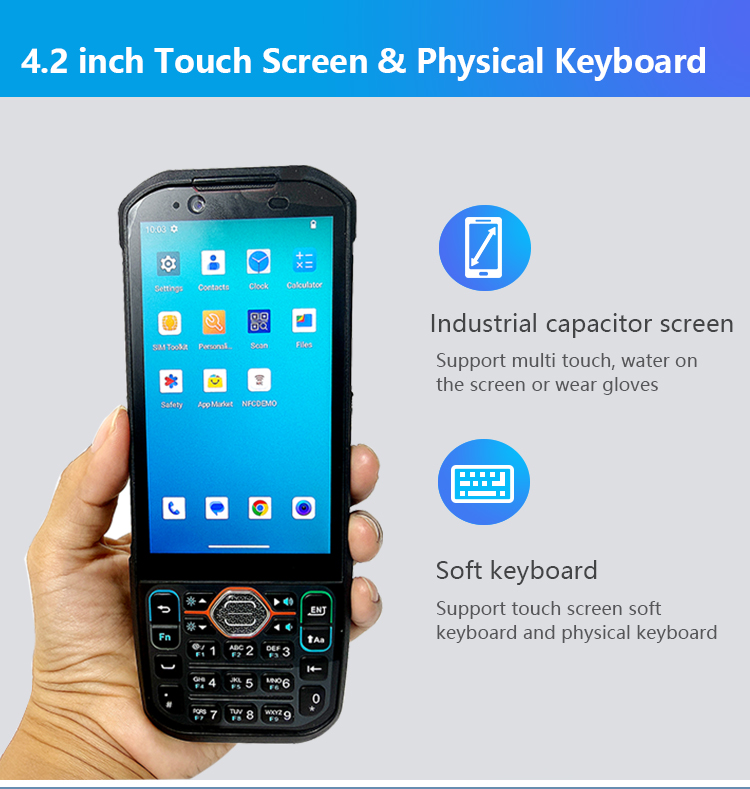

4.2-inch lPS screen

Support multi touch
